Food and beverage
Juice, soy milk, plant-protein drinks and flavored milk
Colloid Mills

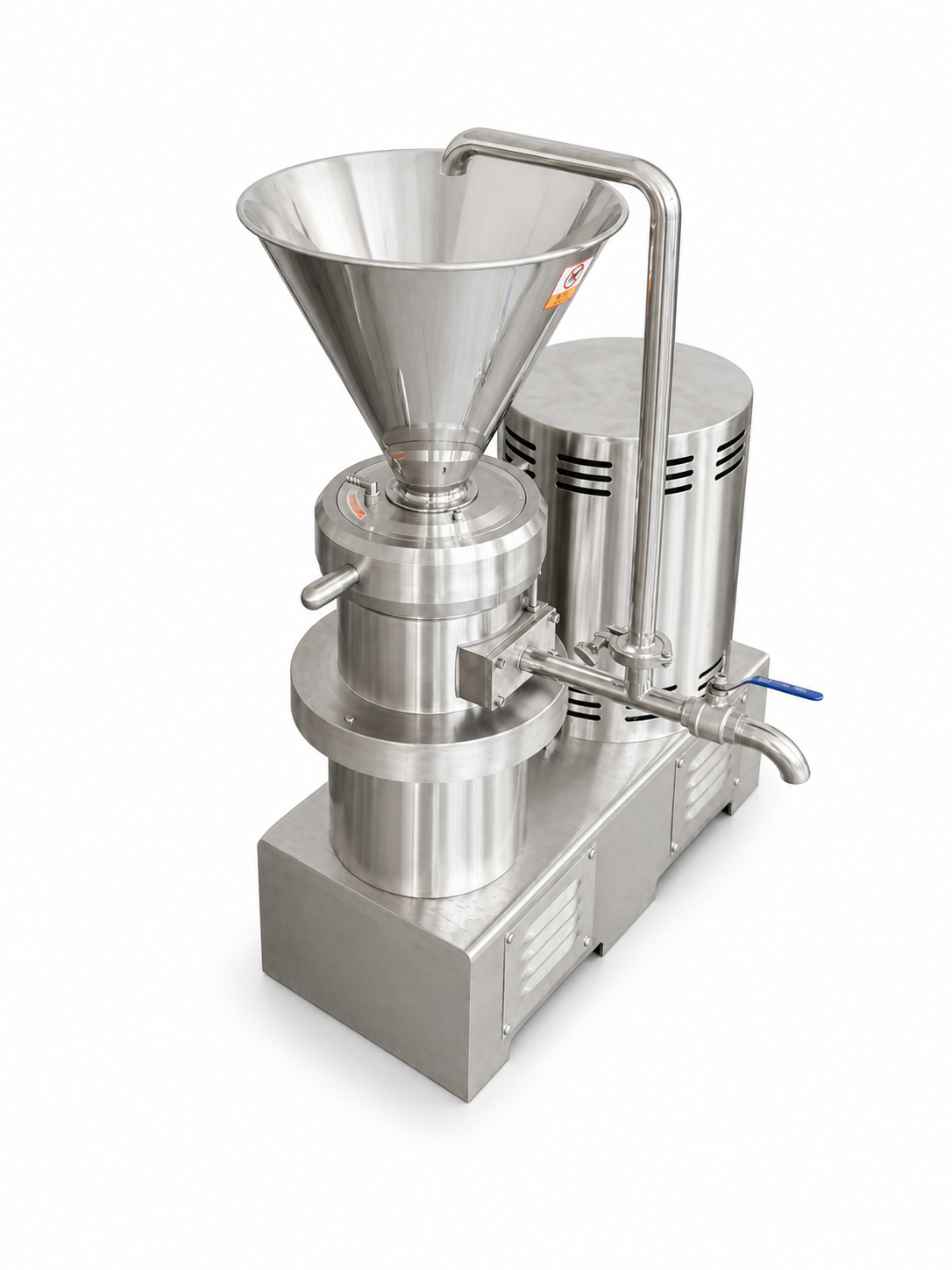

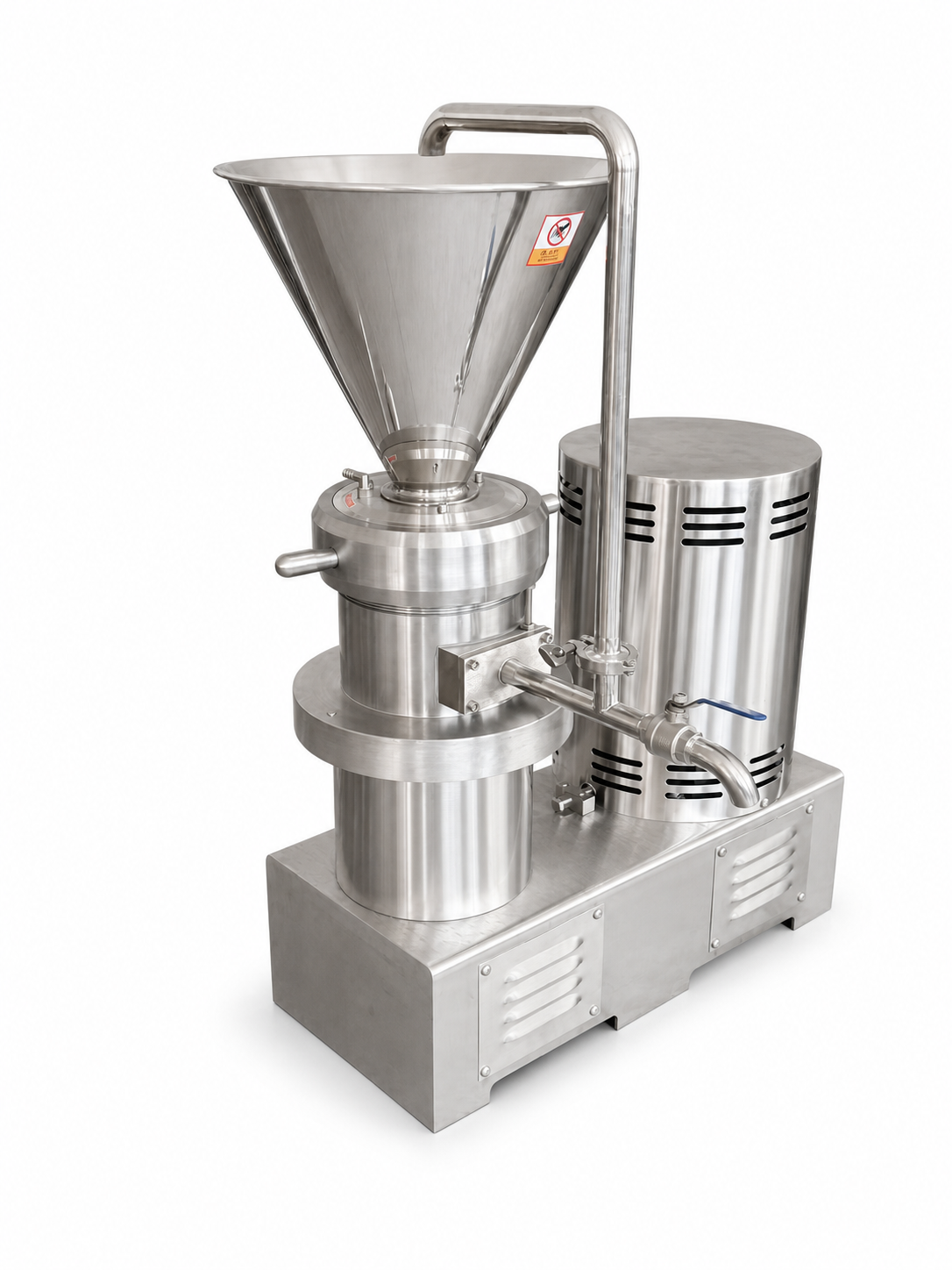

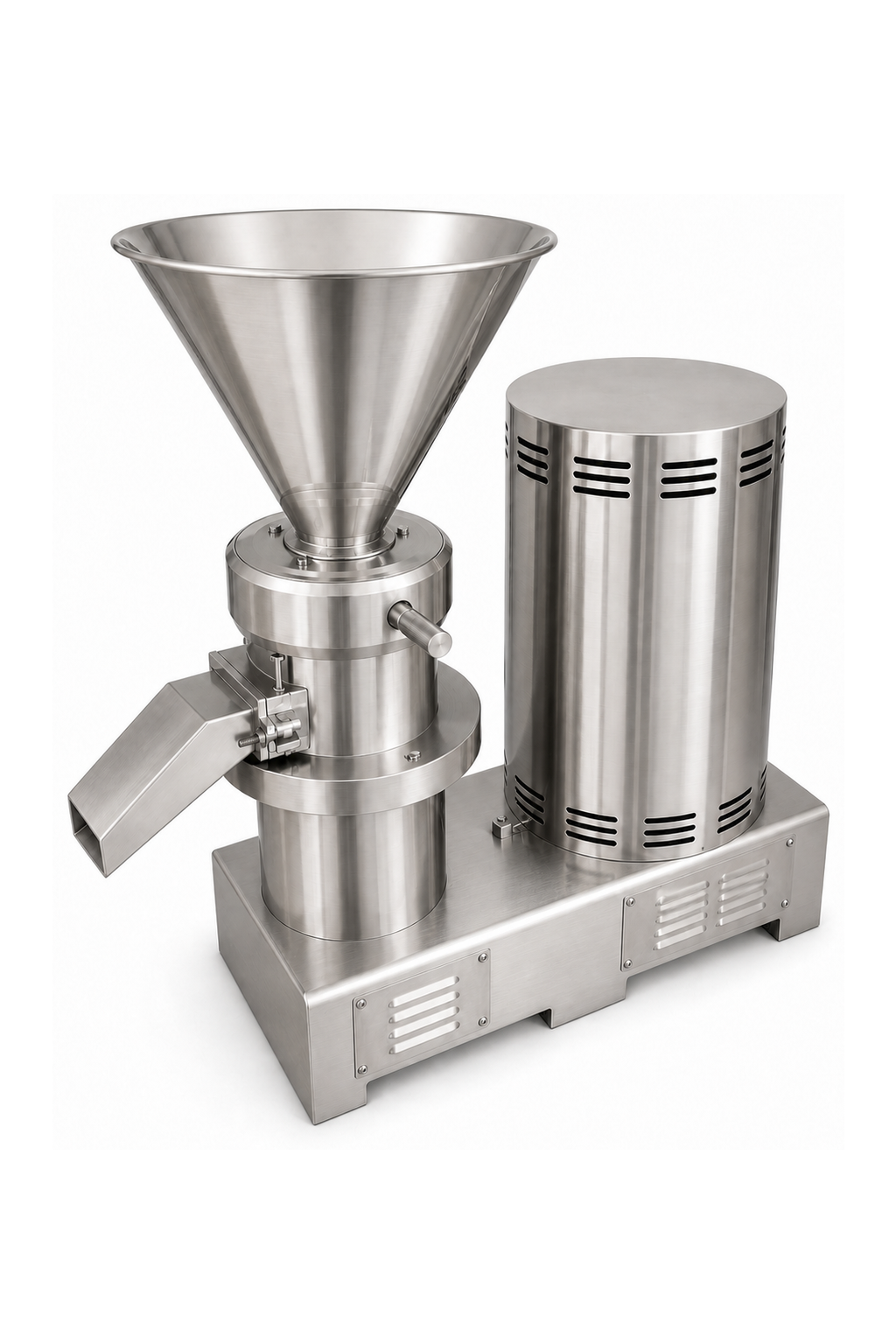

JMS Standard Industrial Colloid MillJMS-80 / JMS-110 / JMS-130 Multifunctional Grinding Machine
Bare-machine dimensions
Length × width × height, mm
| Model | Bare-machine size |
|---|---|
| JMS-80 | 690 × 255 × 950 mm |
| JMS-110 | 760 × 310 × 950 mm |
| JMS-130 | 960 × 360 × 1070 mm |
Interested in this product?
Share your material, required capacity and target result for a model recommendation and quote.
The selected product is added to the inquiry automatically.
Email: info@herenex.com
WhatsApp: +86 134 8238 0109
Typical applications
Use the material itself to understand the application range. Final configuration still depends on material testing and technical confirmation.
Fruit, vegetable and spice
Vegetable pulp, spice paste, fruit and vegetable pulp, and meat paste
Viscous sauces
Peanut butter, sesame paste, tomato sauce and emulsified sauces
Pharma and personal care
Creams, wash-care products, suspensions and homogenized emulsions
Chemicals and materials
Pigments, resin emulsions, adhesives and chemical pastes
Material selection reference
First assess viscosity, solids content, fibers and particles, then combine the target fineness and required throughput. Where categories overlap, use the main processing difficulty or the more conservative category.
01
Beverage - low-viscosity homogenizing
- Material
- Soy milk, plant-protein drinks and juice bases
- Selection basis
- Continuous low-viscosity feeding; focus on suspension and target fineness
02
Beverage - suspension stabilizing
- Material
- Pulp drinks, milkshakes and drinks with stabilizers
- Selection basis
- Premix thoroughly; test the formulation as viscosity rises
03
Starch / grain - pumpable slurry
- Material
- Rice slurry, corn slurry, starch slurry and grain slurry
- Selection basis
- Ungelled and pumpable; diamond or compound teeth
04
Starch - gelatinized high viscosity
- Material
- Cooked rice paste, gelatinized starch slurry and gel slurry
- Selection basis
- Test at the highest viscosity, temperature and solids content
05
Fibrous slurry / meat paste
- Material
- Vegetable pulp, spice paste, meat paste and soft-bone slurry
- Selection basis
- Pre-crush and keep continuously pumpable; inclined teeth preferred
06
Oil-based sauces
- Material
- Peanut butter, sesame paste, nut butter and oil chili
- Selection basis
- Focus on solids, temperature rise and fineness; compound teeth preferred
07
Personal care / pharma - pastes and suspensions
- Material
- Toothpaste, creams, ointments and oral suspensions
- Selection basis
- Confirm cleaning and contact-material requirements separately
08
Industrial slurry / chemical media
- Material
- Pigment slurry, resin emulsion, asphalt emulsion and adhesives
- Selection basis
- Select separately for corrosion, abrasion, explosion protection and temperature control
Food-material capacity and verification
All values are in kg/h. 'Trial required' means no reliable general value is available; it does not mean the machine cannot process the material.
Categories 07 and 08 must be calculated separately from the material condition and equipment configuration.
| Material category | JMS-80kg/h | JMS-110kg/h | JMS-130kg/h |
|---|---|---|---|
01Beverage - low-viscosity homogenizing | 200-300 | 600-700 | 1000-2000 |
03Starch / grain slurry | 50-100 | 200-300 | 400-500 |
05Fibrous slurry / meat paste | Trial required | 100-200 | 300-400 |
06Oil-based sauces | 50 | 100-200 | 200-300 |
02
Suspension-stabilized beverages
With a low additive level and thorough premixing, category 01 may be used as a reference. Test the formulation when viscosity rises.
04
Gelatinized high-viscosity slurry
Calculate from the highest processing viscosity, temperature and solids content; do not apply a fixed conversion ratio.
Choose between JMS-80, JMS-110 and JMS-130

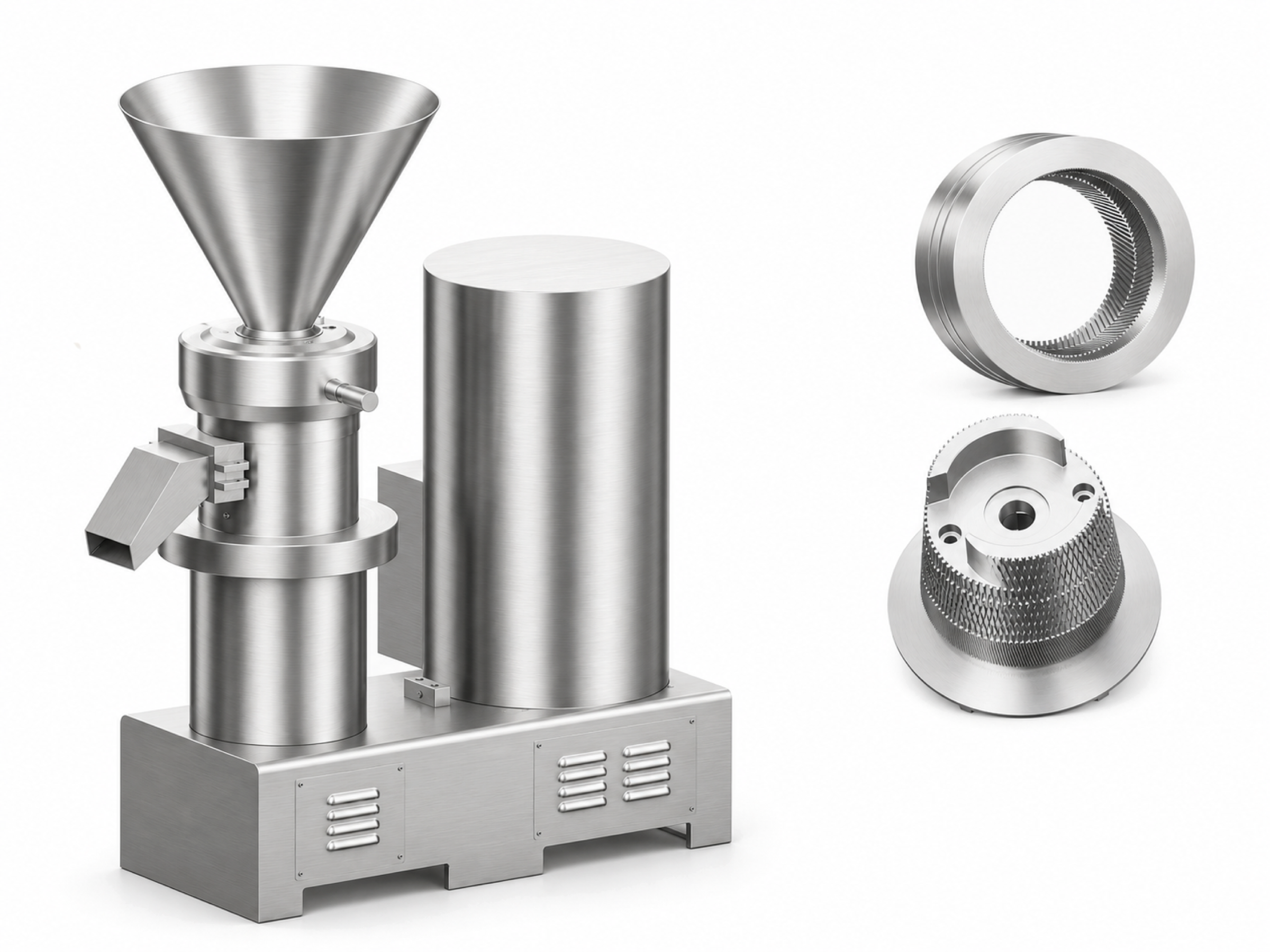

The JMS standard industrial series processes material continuously through an adjustable stator-rotor working gap. Model selection should be based on the material, target result and operating conditions together, not capacity alone.
Model comparison
| Model | Motor power | Speed | Reference fineness | Reference capacity range | Reference weight |
|---|---|---|---|---|---|
| JMS-80 | 4 kW | 2,890 r/min | 2-150 μm | 0.07-0.5 t/h | 150 kg |
| JMS-110 | 7.5 kW | 2,930 r/min | 2-150 μm | 0.3-1 t/h | 220 kg |
| JMS-130 | 11 / 15 kW | 2,930 r/min | 2-150 μm | 0.5-2 t/h | 320 kg |
Reference values, not a performance guarantee. Actual throughput and fineness vary with viscosity, solids content, feed size, working gap, temperature, feeding method and the number of passes.
What this series is designed to do
- Wet grinding and refining: process slurries, emulsions, pastes and materials containing a small proportion of soft particles.
- Shearing, emulsifying and homogenizing: use the stator-rotor working zone to support texture control and process consistency.
- Adjustable processing: match the working gap, tooth profile, feeding and recirculation plan to the material and target result.
Information needed for a model recommendation
- Material name, viscosity, solids content, feed size and any fiber or soft particles
- Required hourly output, daily running time and continuous or batch operation
- Target fineness or texture, acceptable temperature rise and expected number of passes
- Voltage, frequency, phase, cleaning requirements, contact-material needs and installation limits
For high-viscosity, high-solids, fibrous or critical applications, a material test and technical confirmation are recommended before the final model and configuration are fixed.
